Description

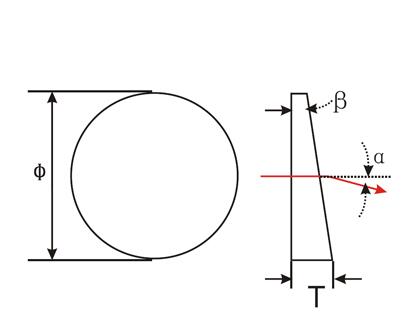

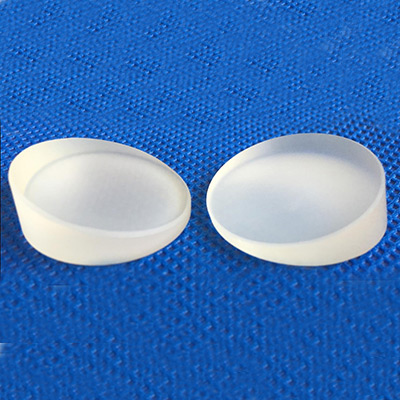

Wedge Prisms is also called Wedge Windows have similar function with optical windows.They all can be used as isolating components. Wedges may be used to produce a small deviation, which don't allow return to the source.
Wedge Prism Specification:
|
Material: |
N-BK7 or UV Fused Silica, ZnSe, Germanium etc. |
|
Dimension Tolerance: |
+0.0, -0.1mm |
|
Thinkness Tolerance : |
+/-0.2mm |
|
Surface quality: |
60-40 S/D |
|
Surface flatness: |
λ/4 @ 632.8nm |
|
Wedge tolerance: |
±1 arc min |
|
Clear Aperture: |
>85% of dimension |
|
Bevel: |
<0.25mm×45° |
|
Coating |
AR coated, Dielectric coated or Upon requirement |
