Description

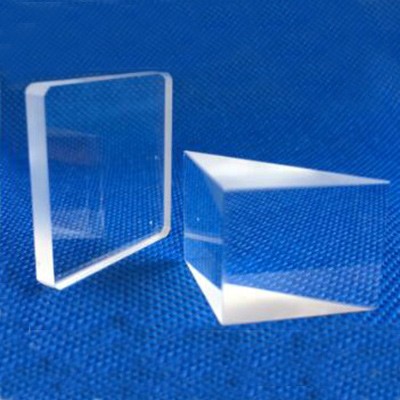

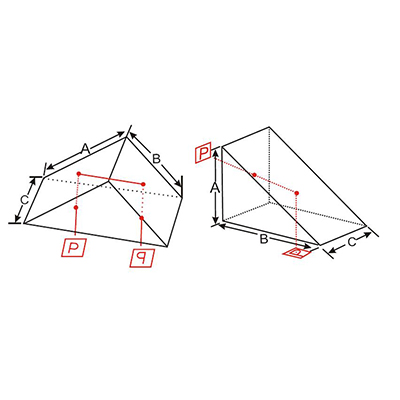

Right Angle Prism is deviating or deflecting a beam of light with 90°or 180°. It is often used in telescope, periscope and other optical system.
Right Angle Prism specification:
|
Material: |
N-BK7 ; UV Fused Silica etc optical glass |
|
Dimension Tolerance: |
±0.1mm(Standard) ; ±0.05mm (High precision) |
|
Surface quality: |
60-40 S/D(Standard); 10-5 S/D(High precision) |
|
Surface flatness: |
λ/4@632.8nm(Standard); λ/8@632.8nm(High Precision) |
|
Deviation 180°: |
±3 arc min(Standard); ±30 arc sec(High Precision) |
|
Clear Aperture: |
>85% of dimension |
|
Bevel: |
<0.25mm×45° |
|
Coating: |
AR coated, Aluminum Coated or Upon your requirement |
