Description

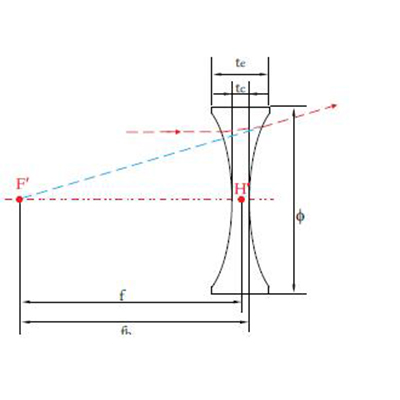

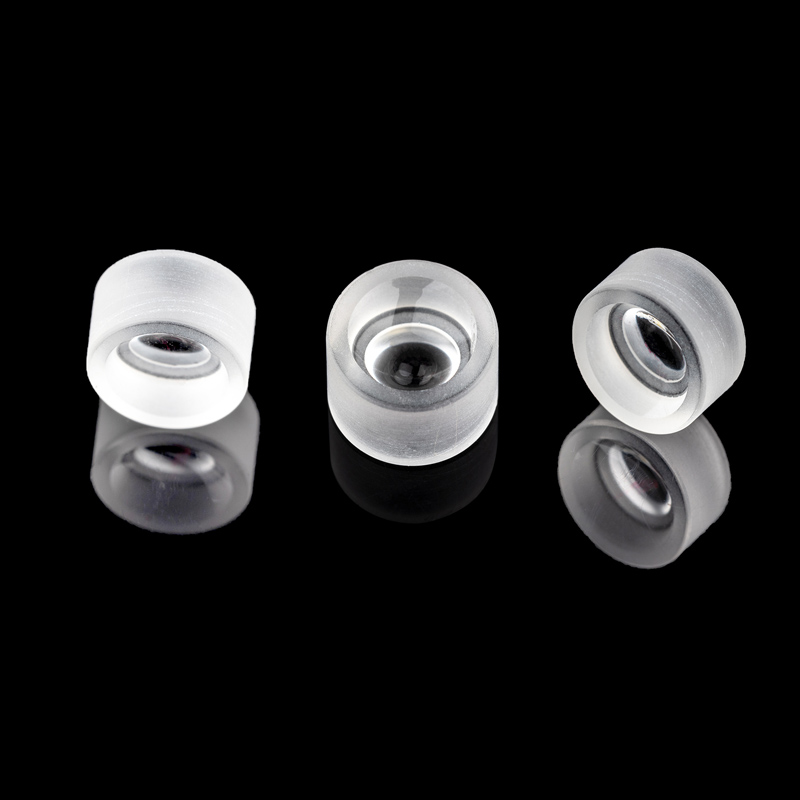

Bi-Concave Lenses is like the Plano-Concave lenses in that they are used to produce divergent light. The Bi-Concave is best used when the input beam is converging.
|
Material: |
BK7,Fused
Silica or other optical glass |
|
Dimension
Tolerance: |
±0.1mm(Standard),
±0.01mm(High Precision) |
|
Center
Thickness Tolerance: |
±0.1mm(Standard),
±0.02mm(High Precision) |
|
Paraxial
Focal Length: |
±2% |
|
Surface
quality: |
60/40(Standard),
20/10(High Precision) |
|
Clear
Aperture: |
>85% |
|
Surface
Figure: |
λ/2(Standard),
λ/8(High Precision) @633nm |
|
Centration: |
3
arc minutes |
|
Bevel: |
<0.25mm×45° |
|
Coating: |
Upon requirement |
