Description

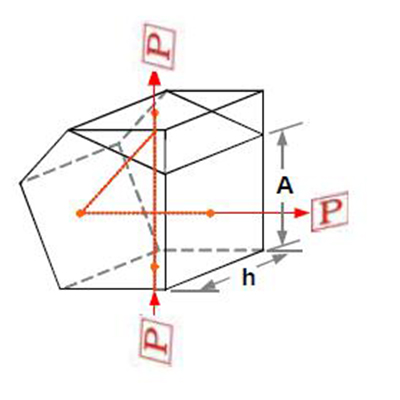

Beamsplitter Penta Prism by adding a wedge and with partial reflective coating on surfaces S1,It can be used not only as precision penta prism but also as a beamsplitter.
Beamsplitter Penta Prism Specification:
|
Material: |
N-BK7, Fused silica or other optical glass |
|
Dimension Tolerance: |
+0.0, -0.2mm |
|
Surface quality: |
60-40 S/D |
|
Surface flatness: |
λ/4 @ 632.8nm |
|
Angle Tolerance: |
±30 arc sec(Standard); ±5 arc sec(High Precision) |
|
Clear Aperture: |
>85% of dimension |
|
Bevel: |
<0.25mm×45° |
|
Coating: |
Surfaces S1 & S2 :Single layer MgF2 coating |
|
Surfaces S3 & S4: Aluminized and painted black |
