Description

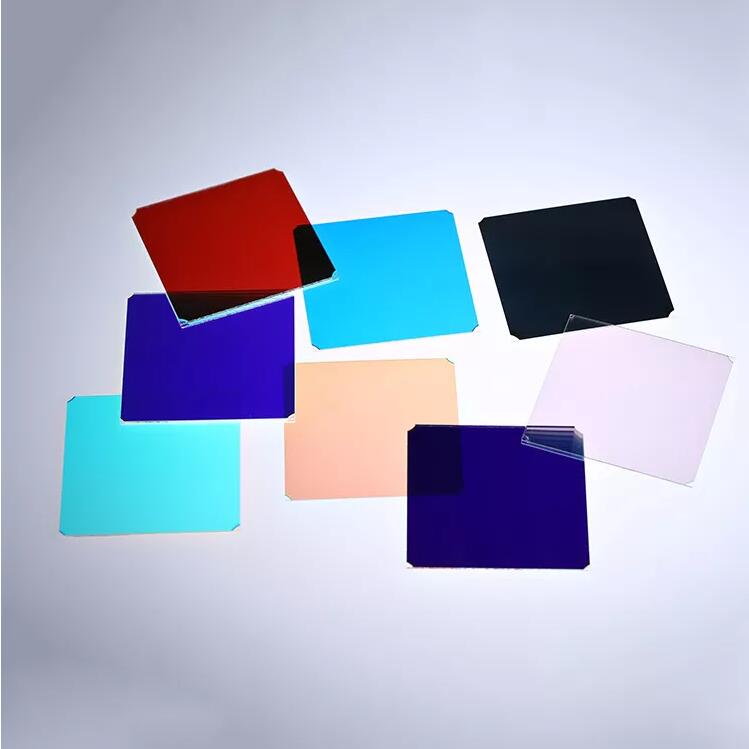

Color Filters are named based on the average transmissivity characteristics in 400nm to 700nm wavelength with 2mm thick. Sample is 70%, then it's named as ZAB70. And there are ten types of glasses in this part. But three types of them(ZAB65,ZAB30,ZAB5)are tested in 440nm-660nm wavelength.

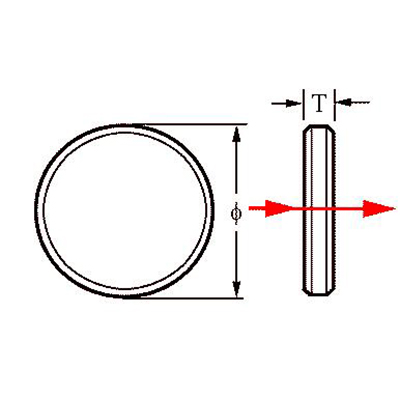

Color Filter Specification:
Material:
Color glass
Dimension Tolerance:
+0.0, -0.2mm
Thickness Tolerance:
+/-0.2mm
Surface quality:
80/50
Clear Aperture:
>85%
Flatness:
1 λ per 25mm@633nm
Parallelism:
<3'
Bevel:
<0.25mmx45°
Coating:
Upon requirement
