Description

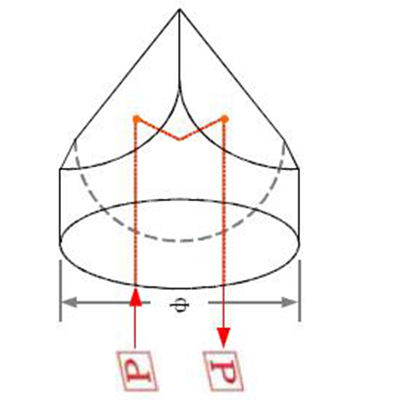

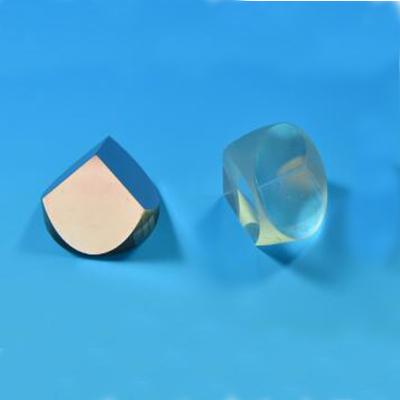

Corner Cube Retroreflectors(Prism) they are designed to reflect any ray or beam entering the prism face, regardless of the orientation of the prism, back onto itself. They have three mutually perpendicular surfaces and a hypotenuse face. Their accuracy is shown with the angular deviation (parallelism) between input and output beams. It depends on the mutual perpendicularity of the trihidron surfaces. They are used to the optical metrology, gauging and laser interferometer.
Corner Cube Retroreflectors(Prism) Specification:
|
Material: |
N-BK7, Fused Silica or other optical glass |
|
Dimension Tolerance: |
+0.0, -0.2mm |
|
Surface quality: |
40-20 S/D |
|
Surface flatness: |
λ/4 on front surface,λ/8 on reflective surfaces |
|
Deviation 180°: |
±5 arc sec(Standard); ±3 arc sec(High Precision) |
|
Clear Aperture: |
>85% of dimension |
|
Bevel: |
<0.25mm×45° |
|
Coating: |
1.Uncoated |
|
2.Silver(Copper)+ Black paint on reflective surfaces |
|
|
3.AR coating, R<0.25%, on front surface AOI=0°; |
|
|
Silver(Copper) + Black paint on reflective surfaces. |
