Description

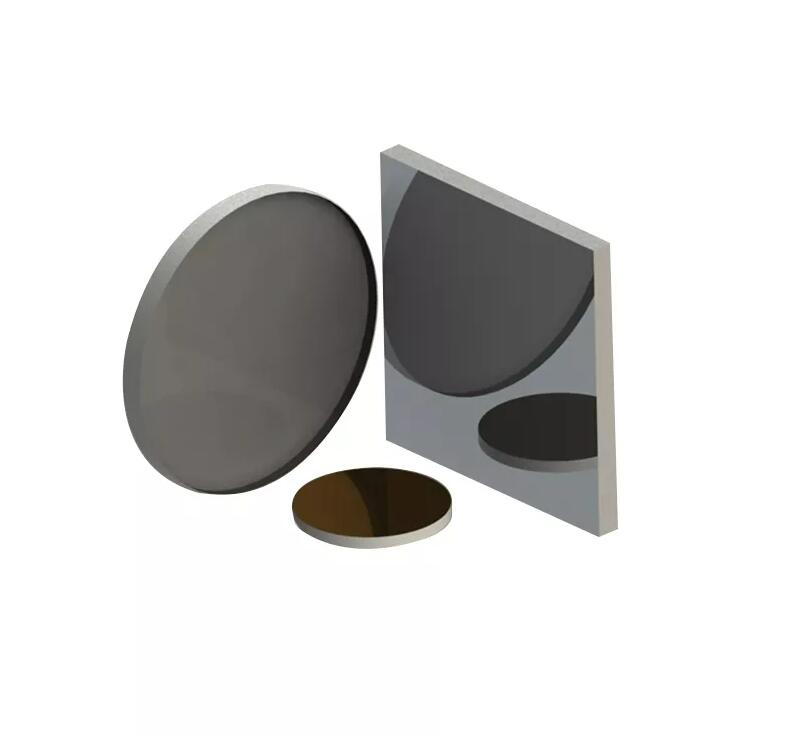

We supplies custom metallized mirrors coated with either Aluminum (Al), Silver (Ag) or Gold (Au).
For the Total reflection mirrors coated with Aluminum, Aluminum over coated with MgF2 or SiO2 and aluminum coating only are offered as standard. MgF2 protection coating prevents damage and oxidation of aluminum, but reduces reflection slightly compared with the aluminum coating only. Usually, MgF2 protection coating is designed for maximum reflectance at visible.
Al,Ag,Au Coated Mirrors Specification:
Material:
Fused
Silica; N-BK7 or others
Dimension
X×Y(φ):
1×1mm~25.4×25.4mm；φ3~φ25.4mm
Dimension
tolerance:
±0.1mm
Parallelism:
＜3′
Clear
aperture:
85%
Surface
quality:
60/40
Flatness(per
25.4mm):
λ/2@ 632.8nm
Coating:
Metal
material coating
